Specifications of UT107+ Automotive Multimeters
UT107+ Automotive Multimeters have updated measurement functions, accuracy, and meter shell to test conventional and hybrid vehicles. This series contains all the reliable functions of the traditional multimeter and offers RPM, dwell angle, pulse width, and battery test as well.
1000V AC/DC voltage and 10A AC/DC current (20A for 10s max) measurement range is suitable for most of the vehicle and electrical facilities maintenance. Up to 1000V VFC mode enables users to take accurate measurements on variable-frequency motor drives, water pumps, HVAC systems.
UT107+ are both True RMS automotive multimeters that meet CAT II 1000V/CAT III 600V safety rating. UT107+ is designed for basic vehicle troubleshooting with 4000 counts display. UT107+ supports some extra functions, such as battery test, pulse width, capacitance with 6000 counts display.
Specifications of UT107+ Automotive Multimeters
| Specifications | Range | UT107+ | |
| DC voltage (V) | 400mV/4V/40V/400V/1000V | ||
| 600mV/6V/60V/600V/1000V | ±(0.5%+3) | ||
| AC voltage (V) | 4V/40V/400V/1000V | ||
| 6V/60V/600V/1000V | ±(0.8%+3) | ||
| AC current (A) | 4mA/40mA/400mA/10A (20A for 10s max) | ||
| 6mA/60mA/600mA/10A (20A for 10s max) | ±(1.0%+8) | ||
| DC current (A) | 4mA/40mA/400mA/10A (20A for 10s max) | ||
| 6mA/60mA/600mA/10A (20A for 10s max) | ±(0.8%+8) | ||
| Resistance (?) | 400?/4K?/40K?/400K?/4M?/40M? | ||
| 600?/6K?/60K?/600K?/6M?/60M? | ±(0.8%+3) | ||
| Capacitance (F) | 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF/100mF | ±(3%+10) | |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+5) | |
| Temperature (?) | -40?~1000? | ±(1.0%+3) | |
| Temperature (?) | -40?~1832? | ±(1.5%+5) | |
| VFC | 1000V | ±(2.0%+10) | |
| RPM | 2STR | ±(3.0%+5) | |
| 4STR | ±(3.0%+3) | ||
| Dwell angle | 1CYL(0?356.4°)/2CYL(0?178.2°)/3CYL(0?118.8°)/4CYL(0?89.1°)/5CYL(0?71.3°)/6CYL(0?59.4°)/8CYL(0?44.5°) | ±(3.0%+5) | |
| Pulse width | 999.9mS | ±(1.5%+10) |

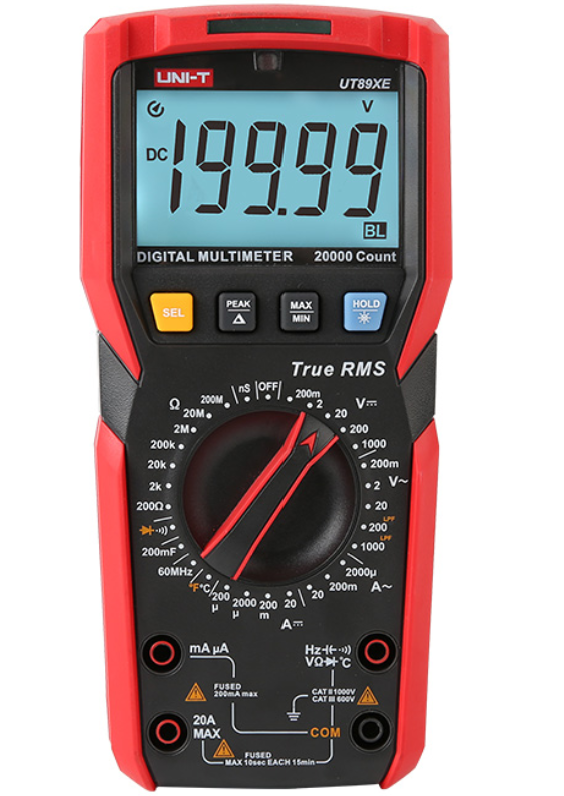

The UNI-T UT89X Digital Multimeter is a high-performance electrical testing tool designed for electricians, technicians, and DIY users who require reliable and accurate measurements. With its advanced functionality and durable design, this digital multimeter is ideal for troubleshooting electrical circuits, appliances, and electronic devices.
The UT89X supports multiple measurement functions including AC/DC voltage, current, resistance, capacitance, frequency, and continuity testing. It also features NCV (Non-Contact Voltage) detection, allowing users to safely detect live wires without direct contact, improving safety during electrical work.
Equipped with a large backlit LCD display, the UT89X ensures clear visibility of readings in low-light environments. The ergonomic and rugged design makes it suitable for both professional field work and everyday electrical maintenance.
Whether you are performing home electrical repairs, industrial maintenance, or electronic circuit testing, the UT89X digital multimeter delivers dependable performance and precise measurement results.
Measures AC/DC voltage, current, resistance, capacitance, and frequency
NCV (Non-Contact Voltage) detection for safe testing
Continuity and diode testing functions
Large backlit LCD display for clear readings
Durable design for professional and daily use
Suitable for electricians, engineers, technicians, and DIY users
Electrical troubleshooting and maintenance
Home appliance repair
Electronic circuit testing
Industrial electrical diagnostics
DIY electrical projects
Features of UT107+ Automotive Multimeters
True RMS
1000V AC/DC voltage measurement
20A AC/DC current measurement (20A for 10s max)
VFC 1000V voltage measurement
Dwell angle 1-8CYL
RPM 2STR/4STR
Capacitance/Pulse width/12V battery test (UT107+)
Temperature/Resistance/Frequency
Data hold/Relative mode/Duty cycle
Diode/Transistor
Backlight
CAT II 1000V / CAT III 600V
| Features | |||
| Display count | 4000 | 6000 | |
| Manual range | ? | ? | |
| Continuity/diode/transistor | ? | ? | |
| Duty cycle | ? | ? | |
| High voltage alarm | ? | ? | |
| High voltage overload alarm | ? | ? | |
| Large current alarm | ? | ? | |
| Low battery indication | ? Approximately 2.4V | ? | ? |
| Backlight | ? | ? | |
| Auto power off | Approximately 15 minutes | ? | ? |
| Data hold | ? | ? | |
| Max/Min/Relative mode | ? | ? | |
| VFC | ? | ? | |
| 12V battery test | ? | ||
| Safety rating | CAT II 1000V/CAT III 600V | ||
| General Characteristics | |||
| Power | AAA 1.5V x2 | ||
| Product color | Red+Gray | ||
| Product net weight | 348g (Including batteries) | ||
| Product size | 183 x 88 x 56mm | ||
| Standard accessories | English manual,test leads,batteries,temperature probe | ||
| Standard individual packing | Gift box,carrying bag | ||
| Standard quantity per carton | 20 pcs | ||
| Standard carton measurement | 420×320×300mm | ||
