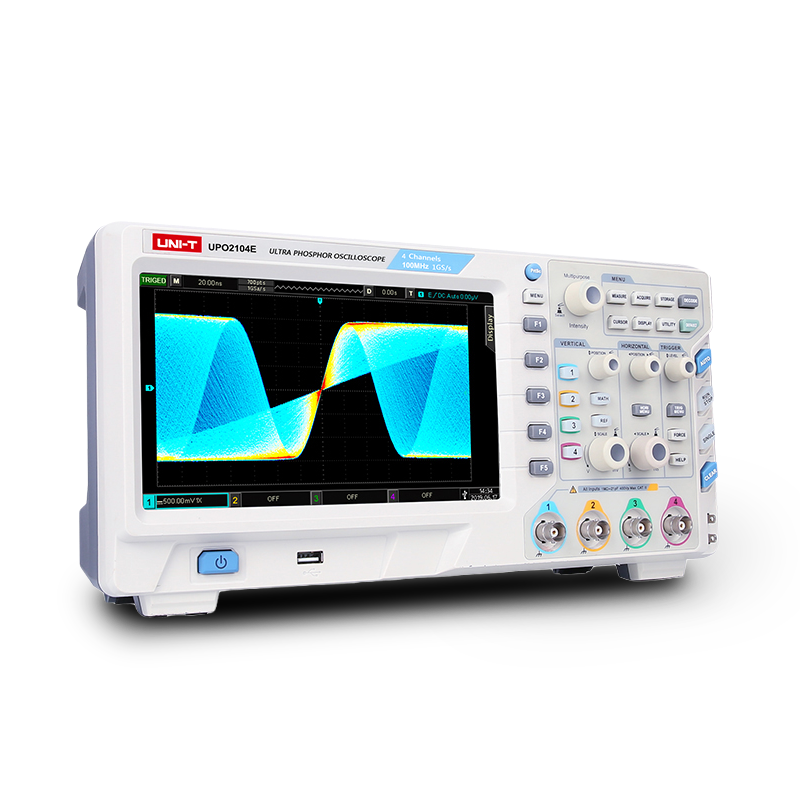

UPO2104E 100MHz 4-Channel Digital Phosphor Oscilloscope – Advanced Signal Analysis Tool

UPO2000E SERIES

The UPO2000E Series offers unprecedented value in customer applications

with its innovative technology,industry leading specifications, powerful trigger

functions and broad analysis capabilities.

The Series is available in 70MHz and 100MHz bandwidth and 2 or 4 analog channels.

It adopts UNI-T UPO visualization technology, has a maximum sample rate

of 1GSa/s and a standard memory depthof 56Mpts.

It comes with a minimum vertical scale input range of 1mV/div, an innovative

digital trigger system with high sensitivity and low jitier,

and a waveform capture rate of 80,000wfms/s.


Product Price
Rs.1,98,754 Rs.98,500.00
Quantity

The UPO2104E Digital Phosphor Oscilloscope is a high-performance electronic testing instrument designed for engineers, technicians, research laboratories, and educational institutions. With 100 MHz bandwidth and 4 analog channels, this oscilloscope allows precise monitoring and analysis of multiple signals simultaneously, making it ideal for complex electronic circuit debugging and waveform analysis.

Powered by advanced digital phosphor technology, the UPO2104E provides smooth waveform rendering, high waveform capture rates, and accurate signal visualization. Its real-time sampling rate of up to 1 GSa/s and deep memory depth enable engineers to capture detailed waveform data and analyze long signal sequences with high accuracy.

The oscilloscope features a large high-resolution color display that delivers clear and detailed waveform viewing. With advanced trigger modes, automatic measurement functions, and FFT math analysis, users can quickly identify signal irregularities such as noise, glitches, and distortions.

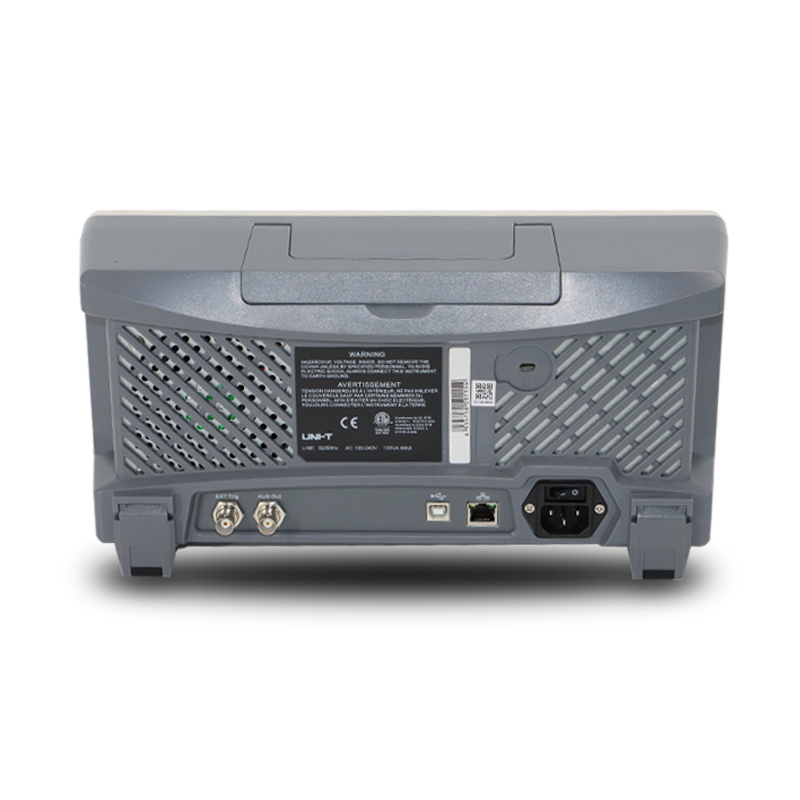

The UPO2104E also offers modern connectivity options including USB Host, USB Device, and LAN interfaces, allowing easy data storage, waveform transfer, and remote operation through a computer. This makes it suitable for both standalone testing and integrated laboratory environments.

Designed for professional use, the UPO2104E Digital Oscilloscope is widely used in electronics repair, embedded system development, automotive electronics diagnostics, industrial equipment maintenance, and academic laboratories

70 MHz to 100 MHz
BANDWIDTH
4
ANALOG CHANNELS
1 GSa/s
REAL-TIME SAMPLE RATE
56 Mpts
MAX. MEMORY DEPTH
80000 wfms/s
WAVEFORM CAPTURE RATE
-
DIGITAL CHANNELS

Digital fluorescent display

Digital fluorescent display


256-level grayscale display capability, timely reflecting

the probability of the appearance of the waveform,

and the waveform change is clearly visible.

Excellent storage depth

Excellent storage depth


Up to 56Mpts storage depth, users can capture longer

Time signal without losing waveform details.

Up to 80,000wfms/s waveform capture rate

Up to 80,000wfms/s waveform capture rate


Up to 80,000wfms/s waveform capture rate,discover occasional problems

in time, greatly improve the ability to capture extremely low-probability events,

and observe signal jitter and glitches more intuitively

Independent time base adjustable

Independent time base adjustable


The time base of each channel is independently adjustable,

which is convenient for users to observe four channels of

frequencies at the same time Significantly different signals

Rich data measurement functions
Rich data measurement functions

Rich data measurement functions


Support 34 kinds of automatic measurement parameter functions,

Support Zoom, Math, statistics and advanced calculation functions.
