Features of UT202BT/UT202T Smart AC Clamp Meters
Features of UT202BT/UT202T Smart AC Clamp Meters
Certificates: CE, UKCA, cETLus
Button-design clamp meter
Specifications of UT202BT/UT202T Smart AC Clamp Meters
| Specifications | Range | UT202T | UT202BT |
| Certificates | CE/UKCA/cETLus | ||
| DC voltage (V) | 600V | ±(0.5%3) | ±(0.5%3) |
| AC voltage (V) | 600V | ±(0.8%3) | ±(0.8%3) |
| AC current (A) | 600A | ±(2.5%+5) | ±(2.5%+5) |
| Resistance (?) | 6M | ±(0.8%+3) | |
| 100M | ±(0.8%+3) | ||
| Frequency (Hz) | 40Hz~1000Hz | ±(1.0+5) | ±(1.0+5) |
| Capacitance (F) | 100mF | ±(4%+5) | ±(4%+5) |
| Temperature (C) | -40~1000/-40~1832 | ±5/±9 | |
| Features | |||
| Jaw opening | 28mm | 28mm | |
| Display count | 9999 | 9999 | |
| Dual display | |||
| Auto range | |||
| NCV | |||
| Continuity | |||
| PEAK hold | |||
| Low pass filter | |||
| Inrush current | |||
| Audible visual indication | |||
| Low battery indication | 2.4V approximately | ||
| Data hold | |||
| Auto power off | Approximately 15 minutes | ||
| Flashlight | |||
| Bluetooth | |||
| Safety rating | CAT 600V | ||
| General Characteristics | |||
| Power | AAA 1.5V x 2 | ||
| Product color | Red+Gray | ||
| Product net weight | |||

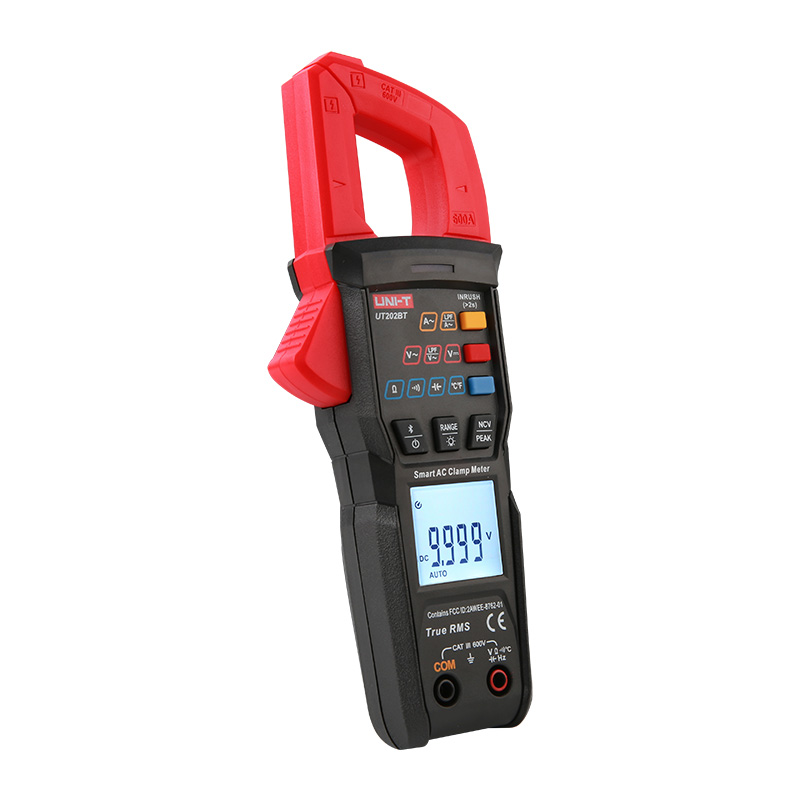

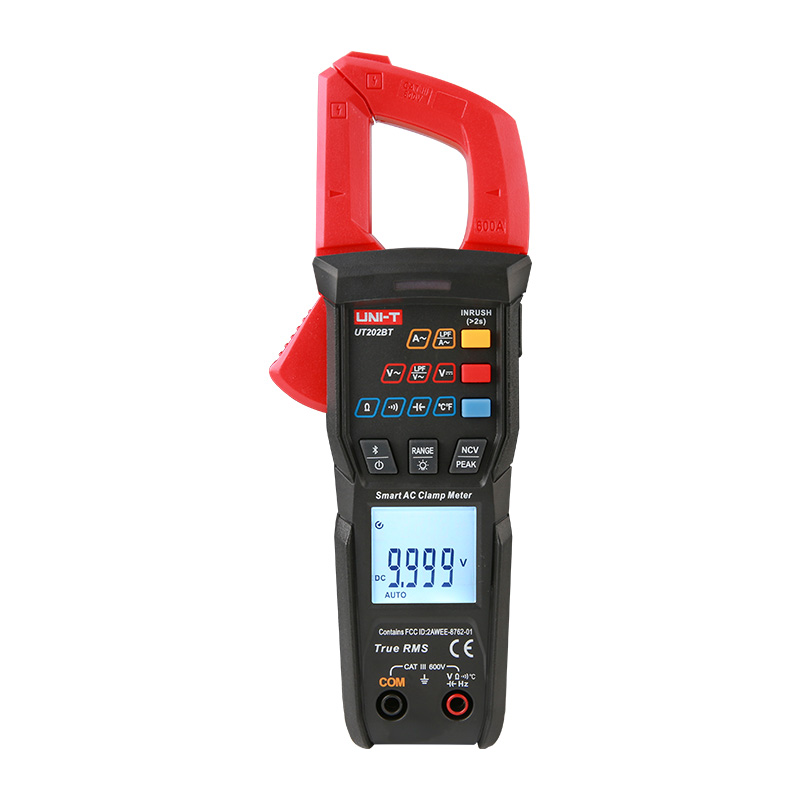

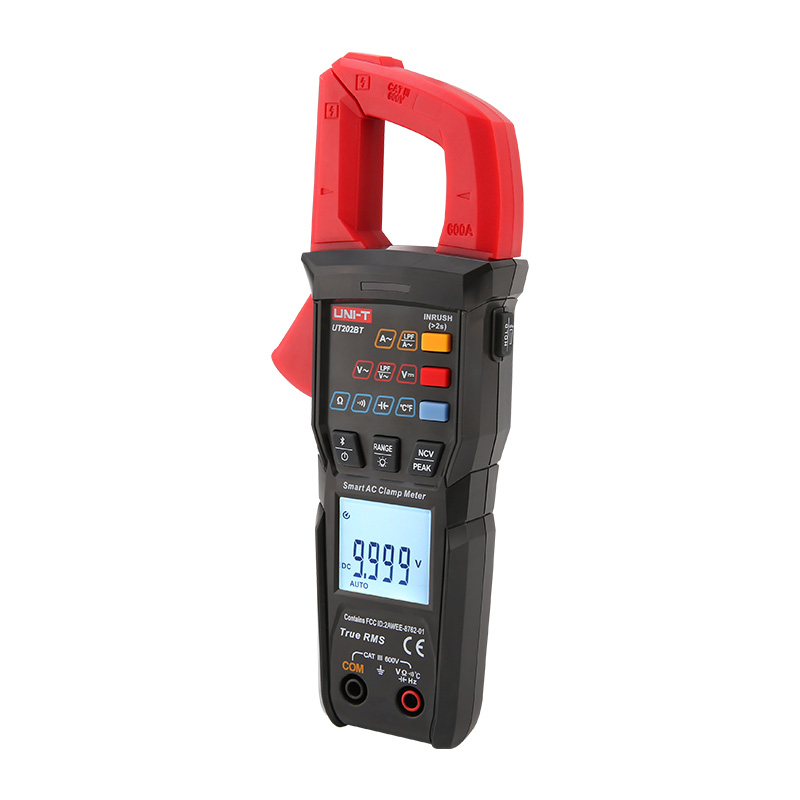

UT202BT is a Bluetooth smart clamp meter designed with low pass filter mode, and inrush current detection, peak hold, and other traditional clamp meter functions. UT202T is a simple to use smart clamp meter which can automatically detect most common parameters.
Models: UT202BT, UT202T
